29200 series

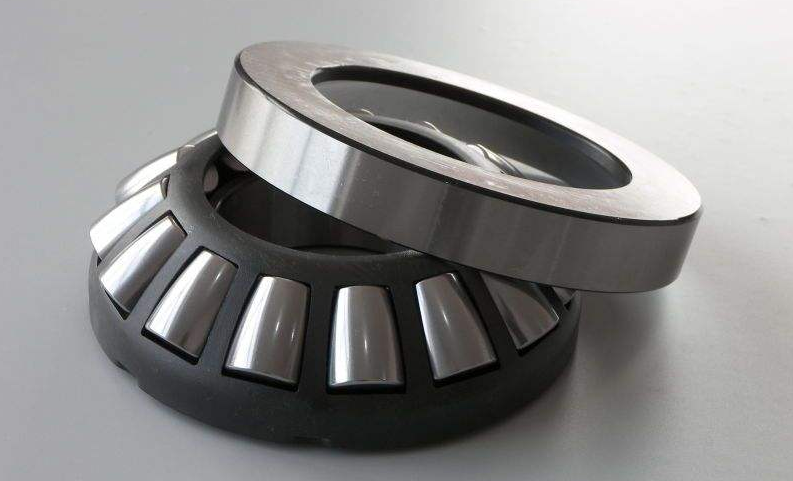

Spherical roller thrust bearing

Drawing No.	Principal dimensions			Basic load ratings		Weight
	d	D	T	dynamic	static
	[mm]			Cr（kN）	Cor（kN）	[kg]
29230 E spherical roller thrust bearing	150	215	39	408	1600	4.3
29232 E spherical roller thrust bearing	160	225	39
29234 spherical roller thrust bearing	170	240	42
29234 E spherical roller thrust bearing	170	240	42
29236 spherical roller thrust bearing	180	250	42	495	2040	5.8
29236 E spherical roller thrust bearing	180	250	42	495	2040	5.8
29238 spherical roller thrust bearing	190	270	48
29238 E spherical roller thrust bearing	190	270	48
29240 spherical roller thrust bearing	200	280	48	656	2650	9.3
29240 E spherical roller thrust bearing	200	280	48	656	2650	9.3
29244 spherical roller thrust bearing	220	300	48	690	3000	10
29244 E spherical roller thrust bearing	220	300	48	690	3000	10
29248 spherical roller thrust bearing	240	340	60	799	3450	16.5
29248 E spherical roller thrust bearing	240	340	60	799	3450	16.5
29252 spherical roller thrust bearing	260	360	60	817	3650	18.5
29252 E spherical roller thrust bearing	260	360	60	817	3650	18.5
29256 spherical roller thrust bearing	280	380	60	863	4000	19.5
29256 E spherical roller thrust bearing	280	380	60	863	4000	19.5

Tolerances

The tolerances of 29200 series spherical roller thrust bearing accord with the normal class of ISO 199:2005 standard but JCB height tolerances are tighter than the standard.

Tolerances of 29200 series spherical roller thrust bearing are tighter minimum 50% than ISO standard for the bearings with basic design.

Tolerances of 29200 series spherical roller thrust bearing is tighter 75% than ISO standard for enhanced spherical roller thrust bearings.

Drawing No.	Principal dimensions			Basic load ratings		Weight
	d	D	T	dynamic	static
	[mm]			Cr（kN）	Cor（kN）	[kg]
29260 spherical roller thrust bearing	300	420	73	1070	4800	30.5
29260 E spherical roller thrust bearing	300	420	73	1070	4800	30.5
29264 spherical roller thrust bearing	320	440	73	1110	5100	33
29264 E spherical roller thrust bearing	320	440	73	1110	5100	33
29268 spherical roller thrust bearing	340	460	73	1130	5400	33.5
29268 E spherical roller thrust bearing	340	460	73	1130	5400	33.5
29272 spherical roller thrust bearing	360	500	85	1460	6800	52
29272 E spherical roller thrust bearing	360	500	85	1460	6800	52
29276 spherical roller thrust bearing	380	520	85	1580	7650	53
29276 E spherical roller thrust bearing	380	520	85	1580	7650	53
29280 spherical roller thrust bearing	400	540	85	1610	8000	55.5
29280 E spherical roller thrust bearing	400	540	85	1610	8000	55.5
29284 spherical roller thrust bearing	420	580	95	1990	9800	75.5
29284 E spherical roller thrust bearing	420	580	95	1990	9800	75.5
29288 spherical roller thrust bearing	440	600	95	2070	10400	78
29288 E spherical roller thrust bearing	440	600	95	2070	10400	78
29292 spherical roller thrust bearing	460	620	95	2070	10600	81
29292 E spherical roller thrust bearing	460	620	95	2070	10600	81
29296 spherical roller thrust bearing	480	650	103	2350	11800	98
29296 E spherical roller thrust bearing	480	650	103	2350	11800	98

Quality

Composed of the engineers from design, technics, inspection and production, a quality assurance team was organized to summarize a pragmatic and effective quality solution, completely reach the goal on researching, stabilizing and continually improving quality. Whole-process quality control was carried out in bearing production, i.e. income quality control (IQC), process quality control (PQC), outgoing quality control (OQC). Metrological instruments as Projective Metroscope JD9A and measuring instruments as CMM Coordinate Measuring Machine RS-30 DCC etc can effectively control the product quality, make the outgoing products to fully meet standards, and additional accuracy are reserved further.

29200 series spherical roller thrust bearing

Drawing No.	Principal dimensions			Basic load ratings		Weight
	d	D	T	dynamic	static
	[mm]			Cr（kN）	Cor（kN）	[kg]
292/500 spherical roller thrust bearing	500	670	103	2390	12500	100
292/500 E spherical roller thrust bearing	500	670	103	2390	12500	100
292/530 spherical roller thrust bearing	530	710	109	3110	15300	115
292/530 E spherical roller thrust bearing	530	710	109	3110	15300	115
292/530 EM spherical roller thrust bearing	530	710	109	3110	15300	115
292/560 spherical roller thrust bearing	560	750	115	2990	16000	140
292/600 spherical roller thrust bearing	600	800	122	3740	18600	170
292/600 EM spherical roller thrust bearing	600	800	122	3740	18600	170
292/630 spherical roller thrust bearing	630	850	132	4770	23600	210
292/630 EM spherical roller thrust bearing	630	850	132	4770	23600	210
292/670 spherical roller thrust bearing	670	900	140
292/670 EM spherical roller thrust bearing
292/750 spherical roller thrust bearing	750	1000	150
292/750 EM spherical roller thrust bearing
292/800 spherical roller thrust bearing	800	1060	155	6560	34500	380
292/800 EM spherical roller thrust bearing	800	1060	155	6560	34500	380
292/850 EM spherical roller thrust bearing	850	1120	160
292/900 spherical roller thrust bearing	900	1180	170
292/950 spherical roller thrust bearing	950	1250	180
292/950 EM spherical roller thrust bearing	950	1250	180
292/1060 spherical roller thrust bearing	1060	1400	206
292/1060 EF spherical roller thrust bearing
292/1180 EF spherical roller thrust bearing
