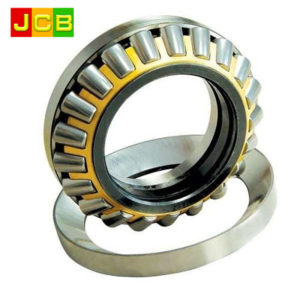

29326 spherical roller thrust bearing

29326 spherical roller thrust bearing

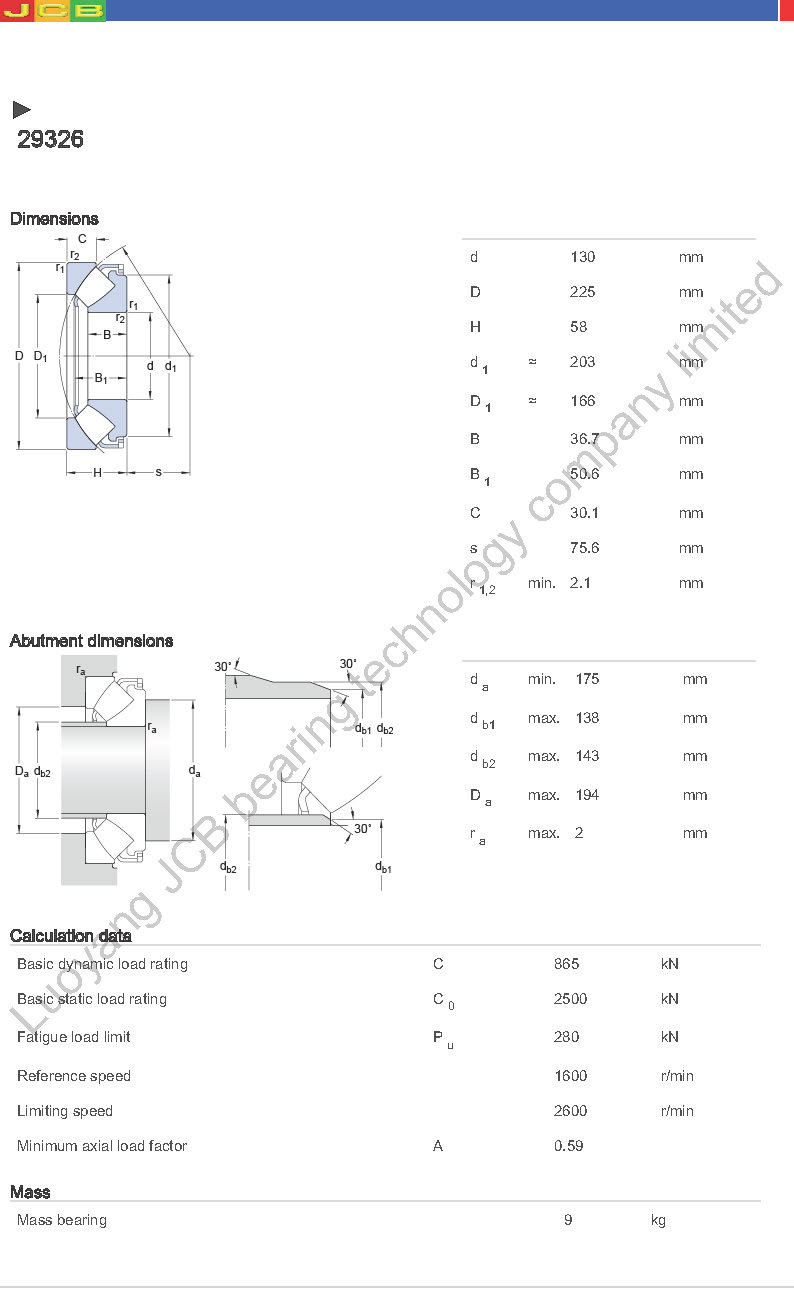

Dimensions

d   130 mm        D  225 mm

H  58 mm          d1 ≈167 mm

D1 ≈205 mm     B    mm

B1  mm         C   mm

s   mm         r1,2 min. 2.1 mm

Material: GCr15SiMn According to Standard  GB/T18254
Stock availability:  yes
HS code: 8482101000
Category:

Description

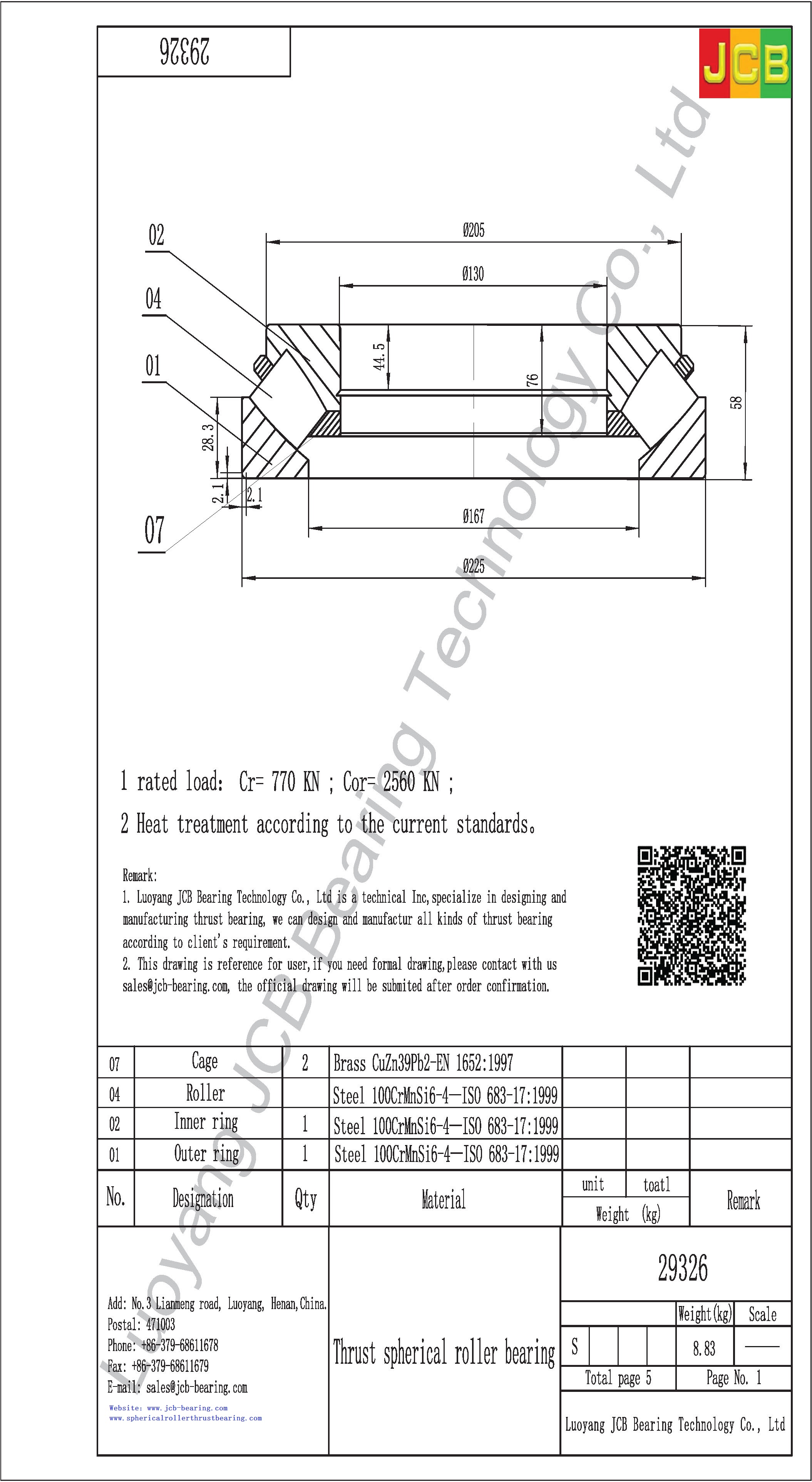

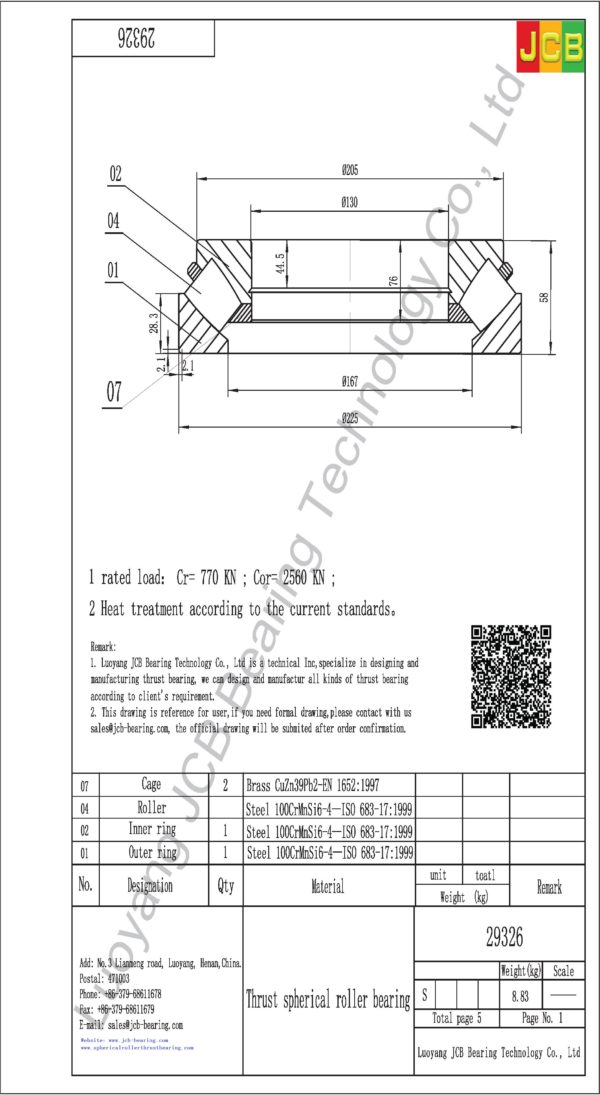

Dimensions of 29326 spherical roller thrust bearing

The boundary dimensions of 29326 spherical roller thrust bearing conform with ISO 104:2002 standard.

Abutment dimensions
Dimensions of 29326 spherical roller thrust bearing1
damin.175mm
db1max.138mm
db2max.143mm
Damax.194mm
ramax.2mm

Misalignment

The structure of 29300 series spherical roller thrust bearing features self-aligning, and can accommodate misalignment of the shaft relative to the housing which can be caused by shaft deflection ect (Fig.8).

The permissible misalignment is reduced as the load increases. Guideline values for misalignment and rotation of the shaft washer relative to the housing washer listed in table 1.

When designing bearing arrangements with rotating housing washer in combination with misalignment or when the shaft wobbles relative to the housing, contact JCB. Whether these values can be fully exploited depends on the design of the bearing arrangement and the external sealing design ect.

Calculation data
Basic dynamic load ratingC865kN
Basic static load ratingC02500kN
Fatigue load limitPu280kN
Reference speed1600r/min
Limiting speed2600r/min
Minimum axial load factorA0.59

Impact Resistance Performance

In order to extend service life and accommodate working conditions, 29326 spherical roller thrust bearing substantially improved the performance by optimizing the internal geometry and surface finish of all contact surfaces, combining the adoption of high standard steel with a salt bath quenching, perfecting the cage, roller profile and the geometry of the raceways.

Embodied in:

  1. Higher dynamic load carrying capacity
  2. Improved wear-resistance
  3. Reduced noise and vibration levels
  4. Less frictional heat
  5. Significantly extended bearing service life

Applications

Our products,29326 spherical roller thrust bearing is extensively applied on the industries as marine gearbox, marine propeller shaft, industrial gearbox, plastic machinery, rubber machinery, rolling mill, crusher, tower crane, engineering machinery, construction machinery, oil rig, vertical motor, hydroelectric generator and so on.

29326 spherical roller thrust bearing

Mass

Mass bearing9kg
